Millwork

A collection of shop drawings for custom residential millwork. The designs shown are by other interior designers. The drawings are included to communicate my understanding of cabinet construction and the information required in a set of shop drawings to execute the final products.

Kitchen

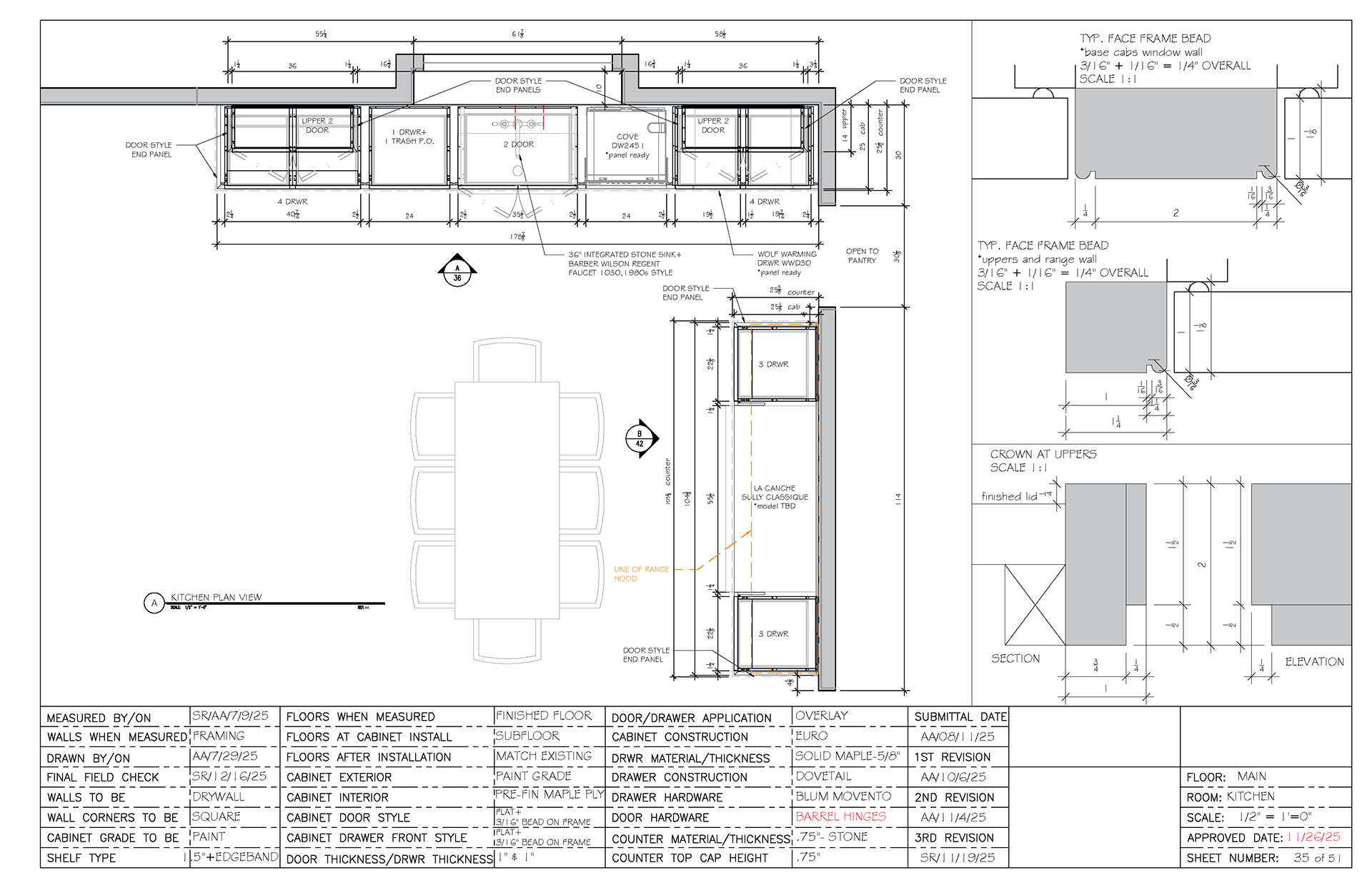

Plan View
Plan View

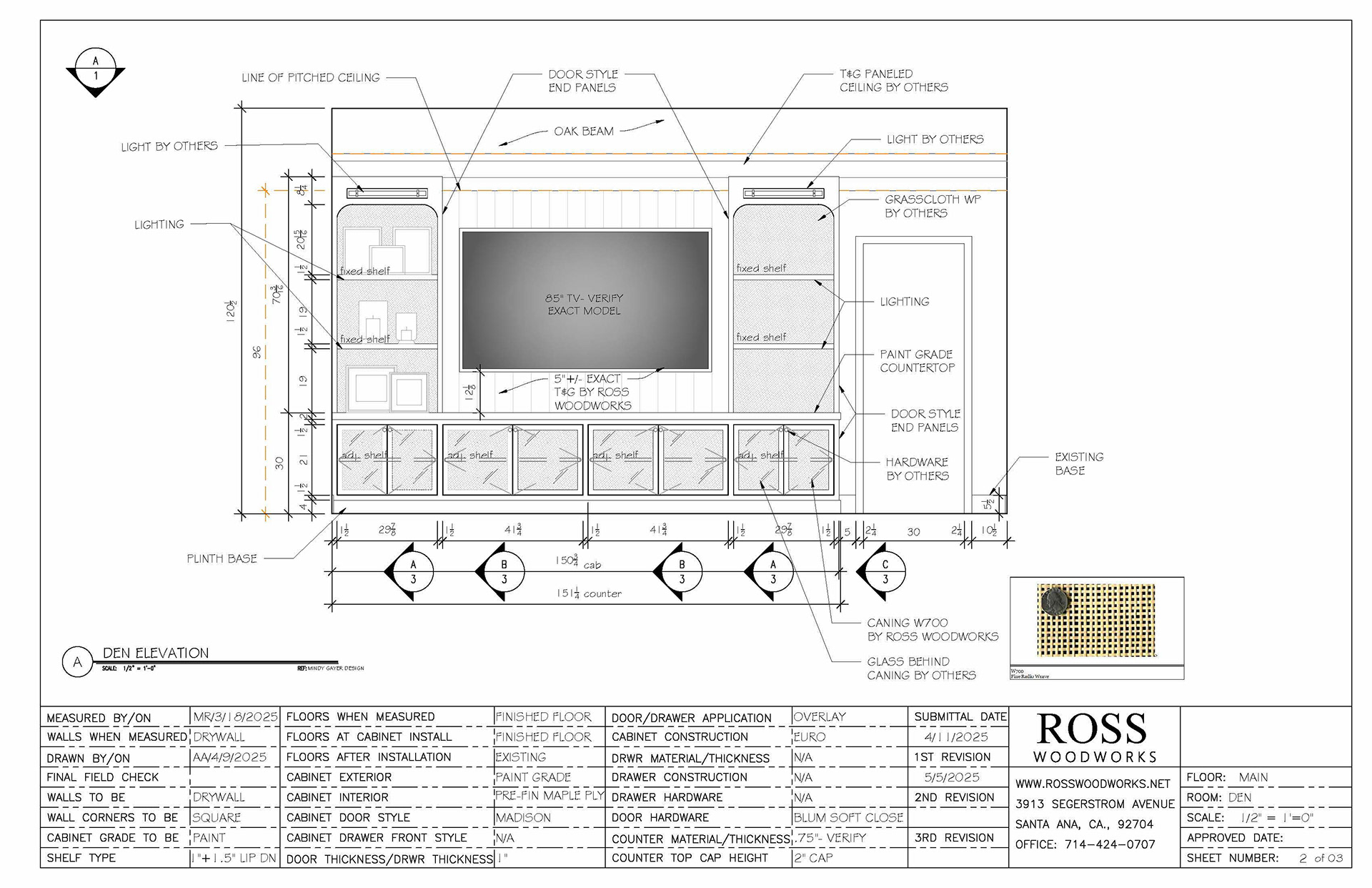

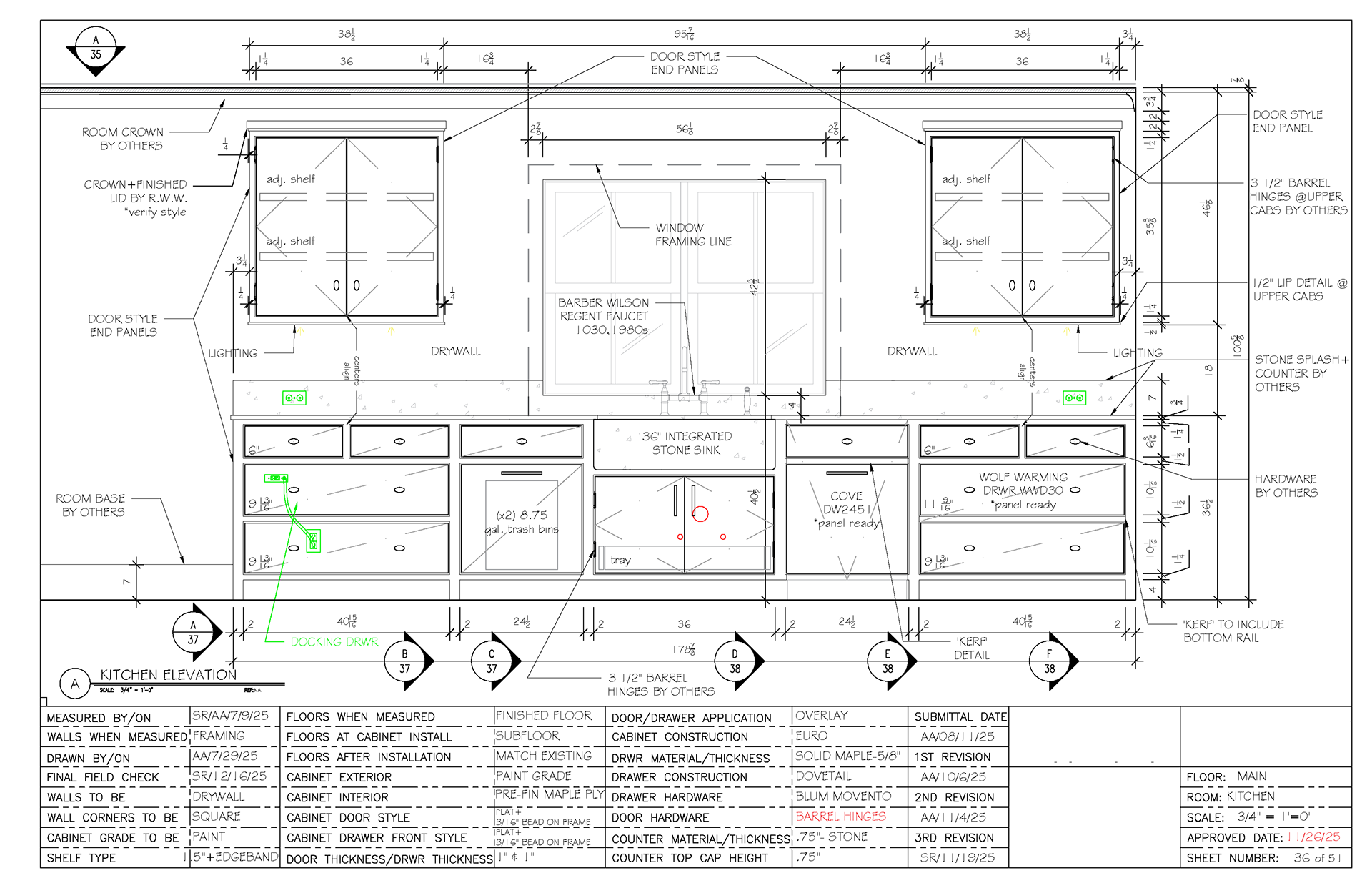

Elevation
Elevation

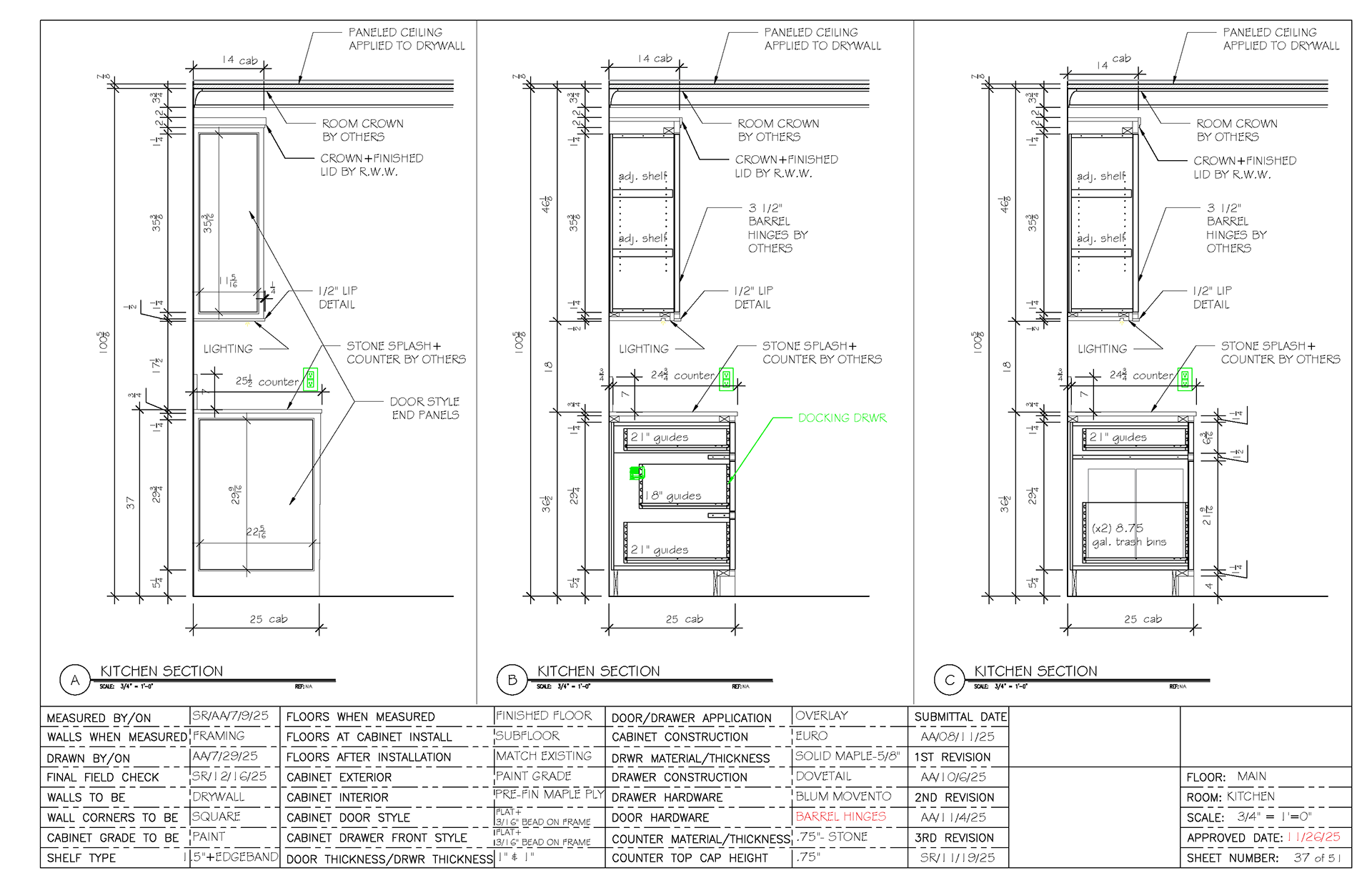

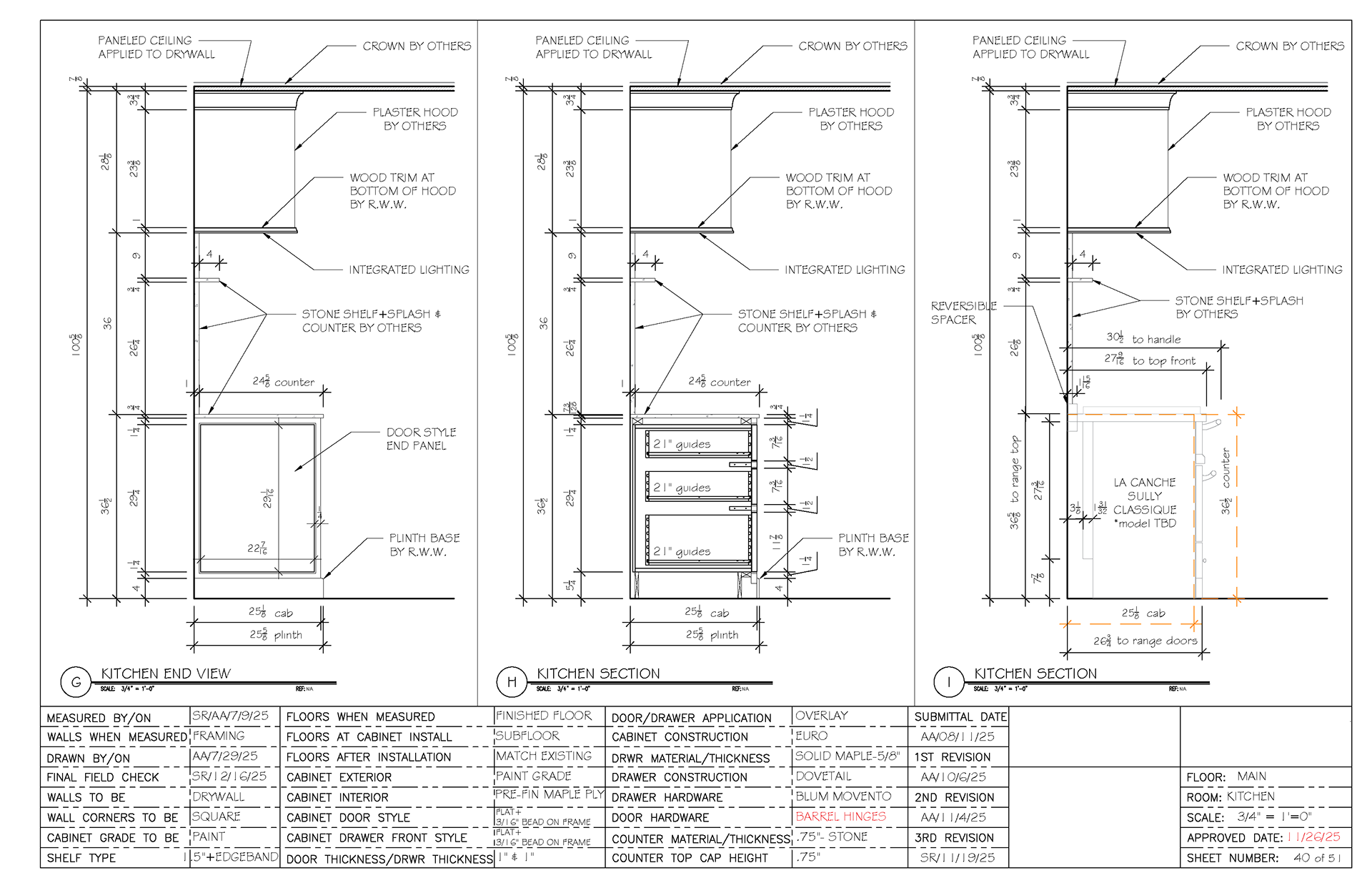

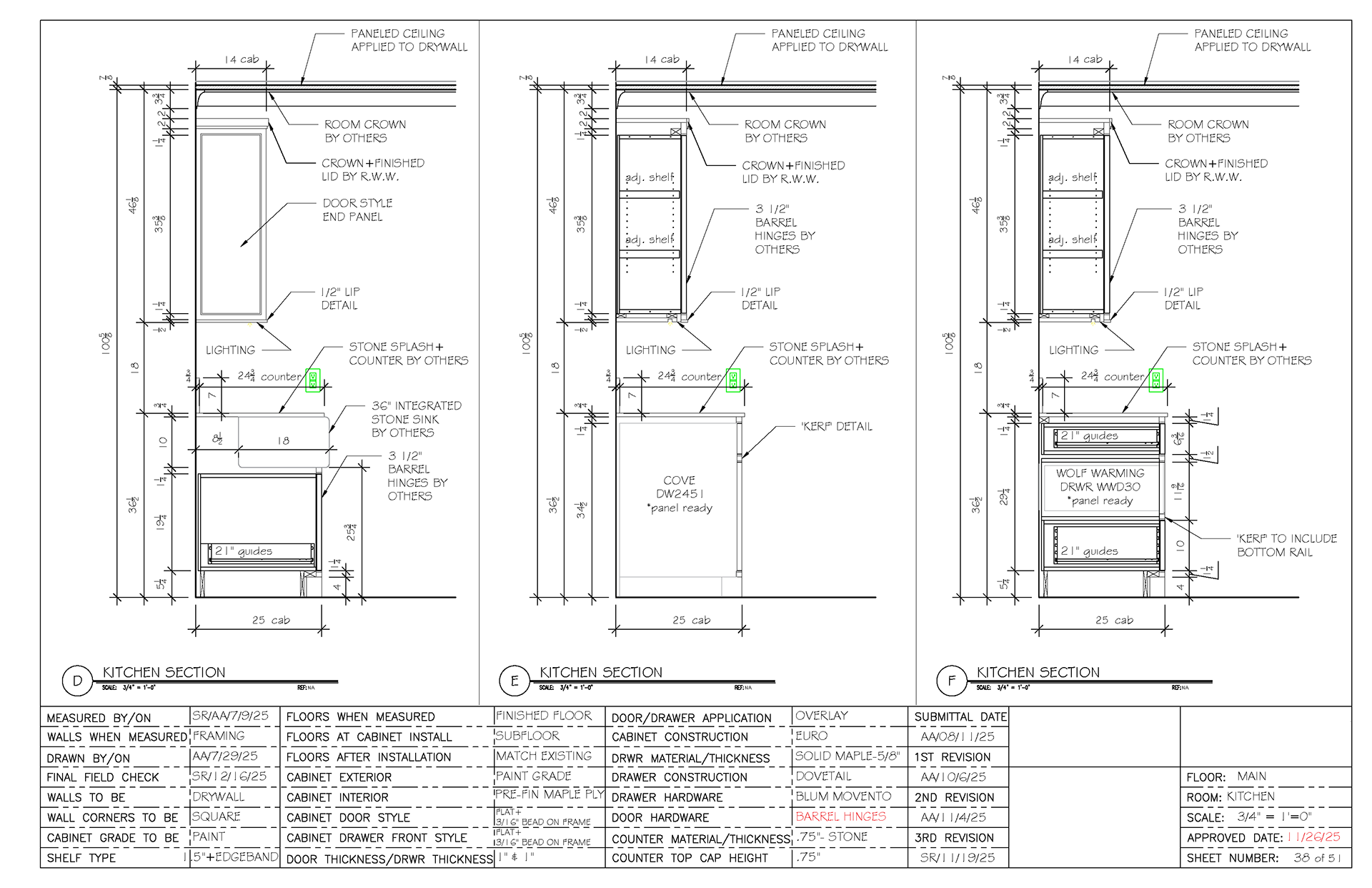

Sections
Sections
Sections
Sections

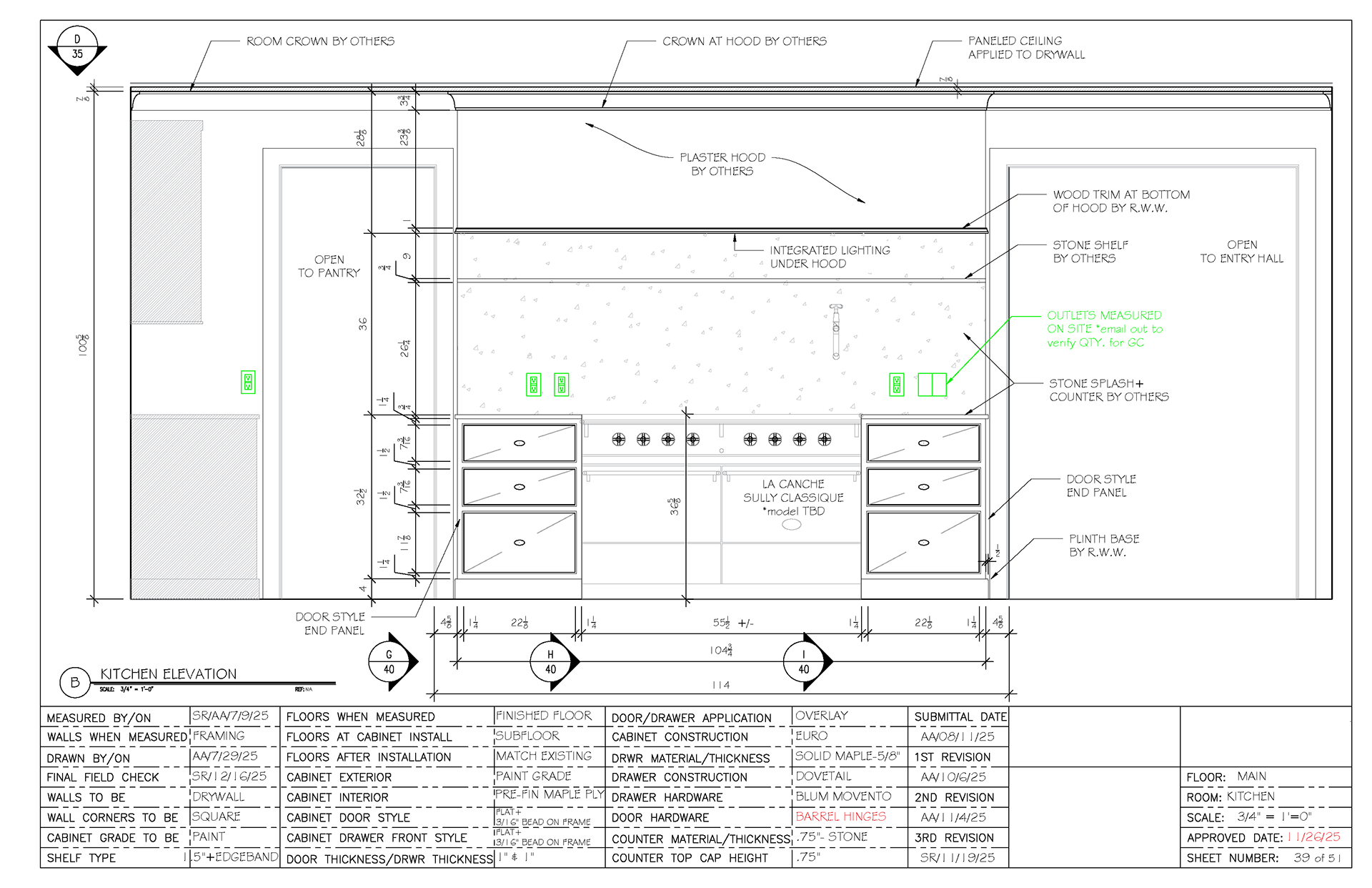

Elevation
Elevation
Sections
Sections
Bedroom Closet & Desk

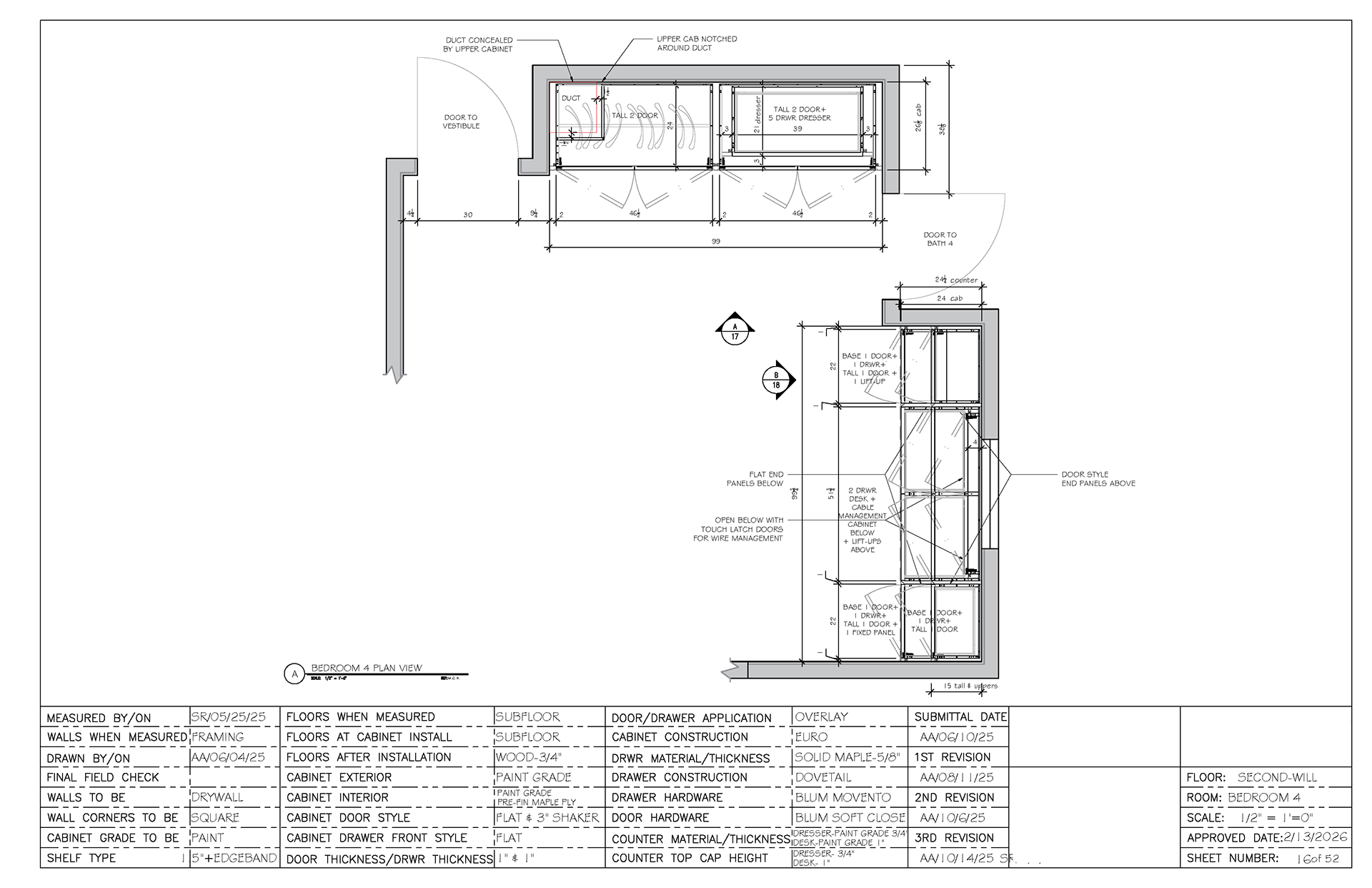

Plan View
Plan View

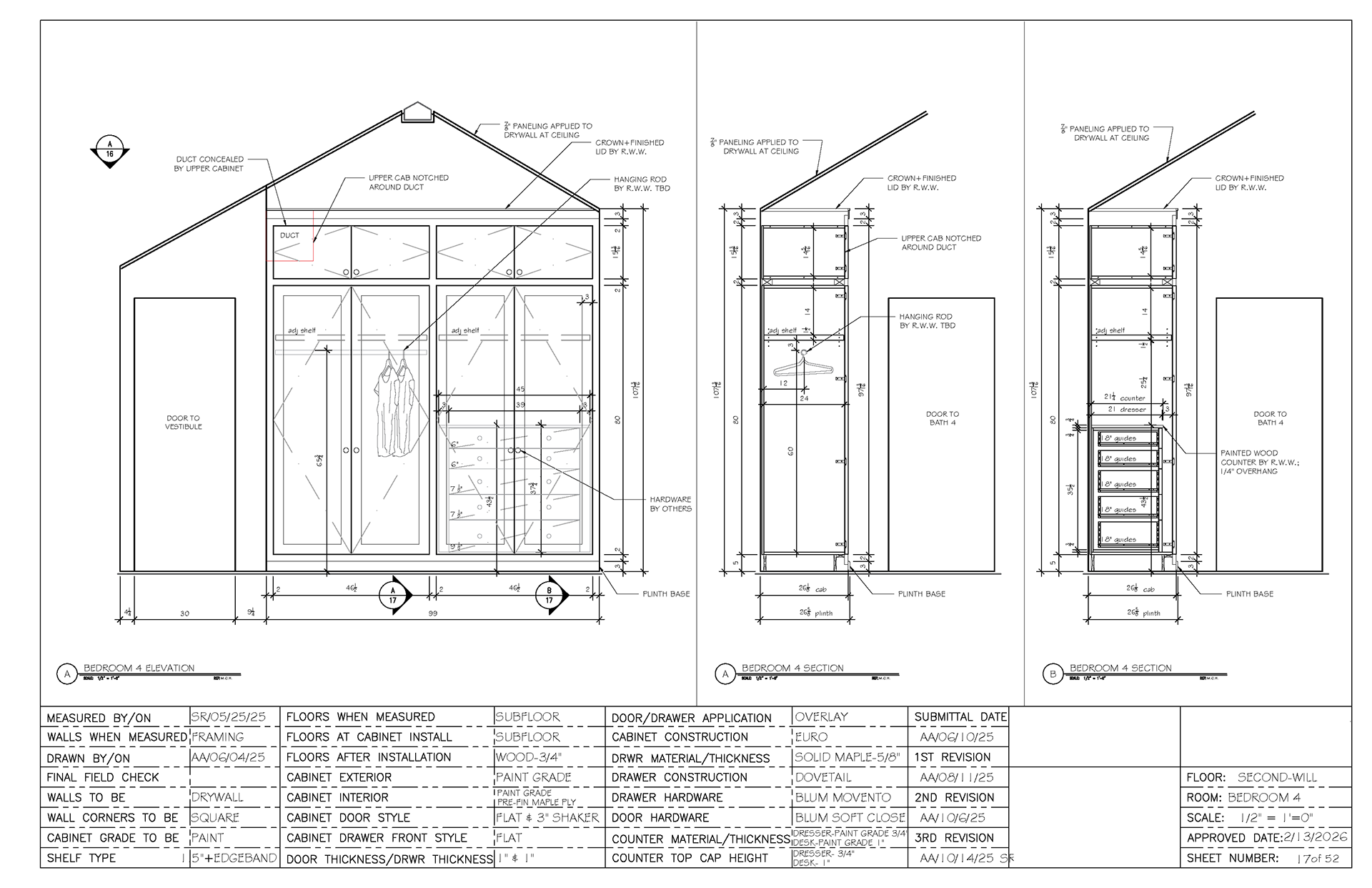

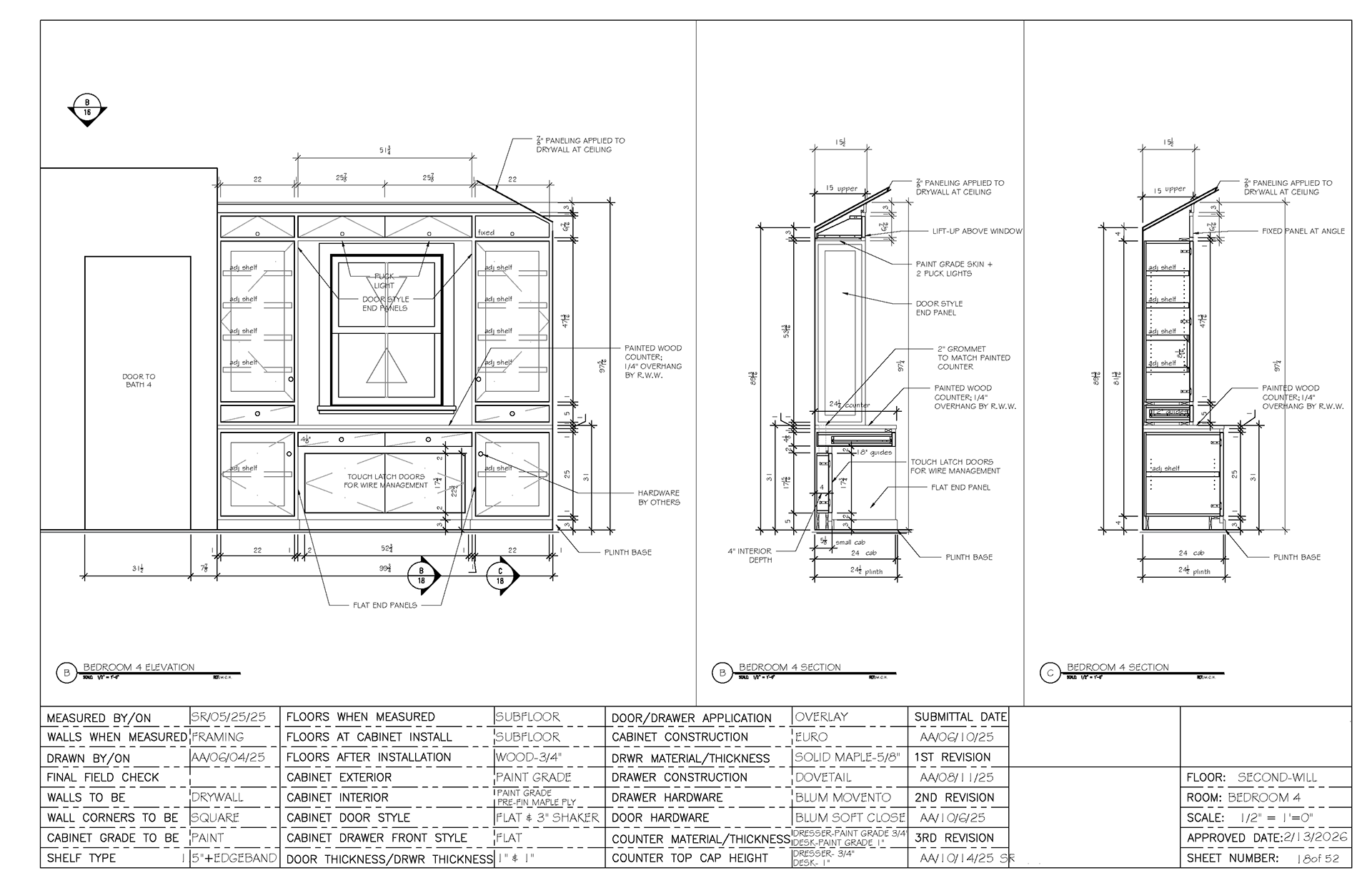

Elevation & Sections
Elevation & Sections
Elevation & Sections
Elevation & Sections
Bathroom Vanity

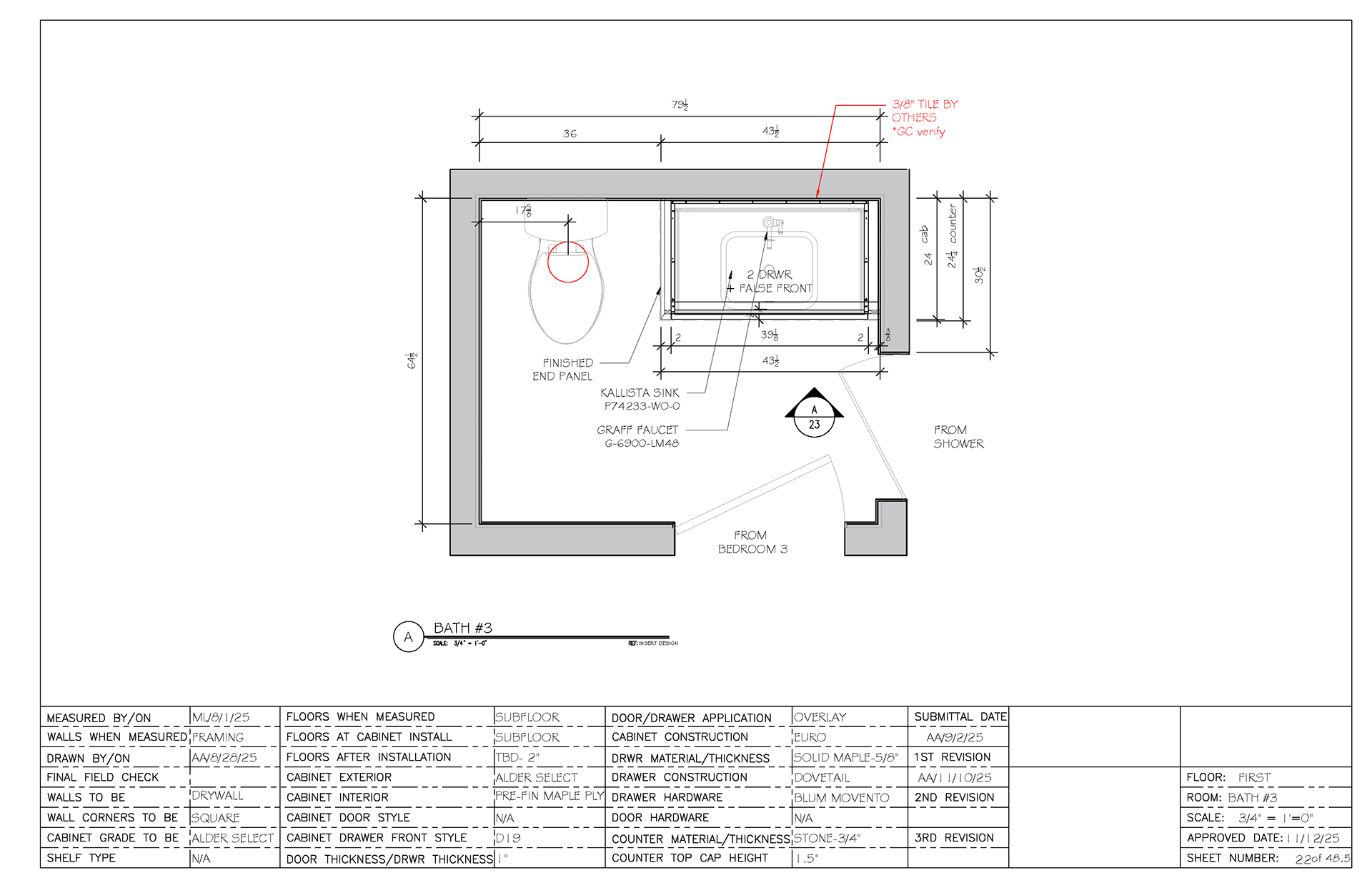

Plan View
Plan View

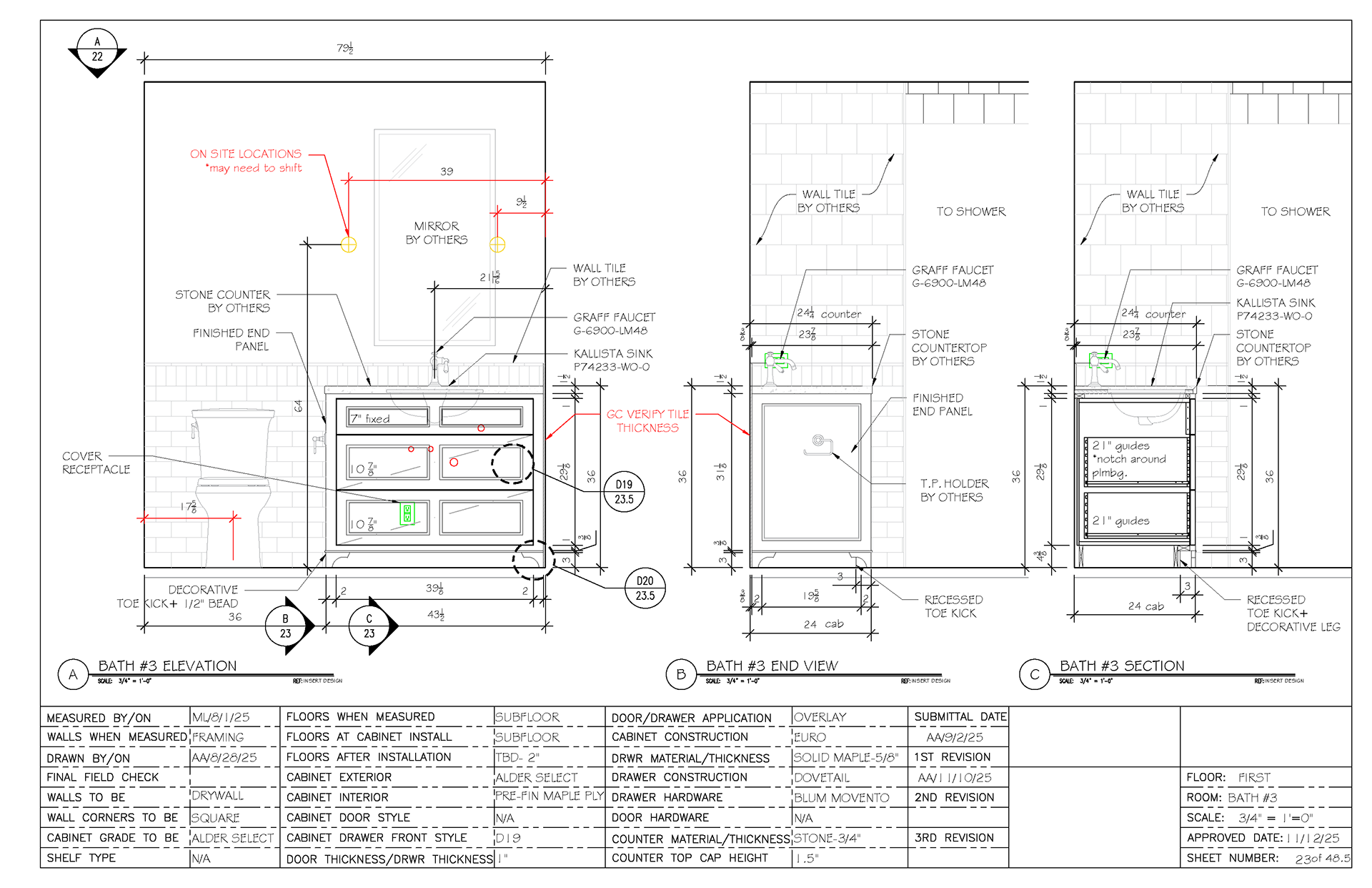

Elevation & Sections
Elevation & Sections

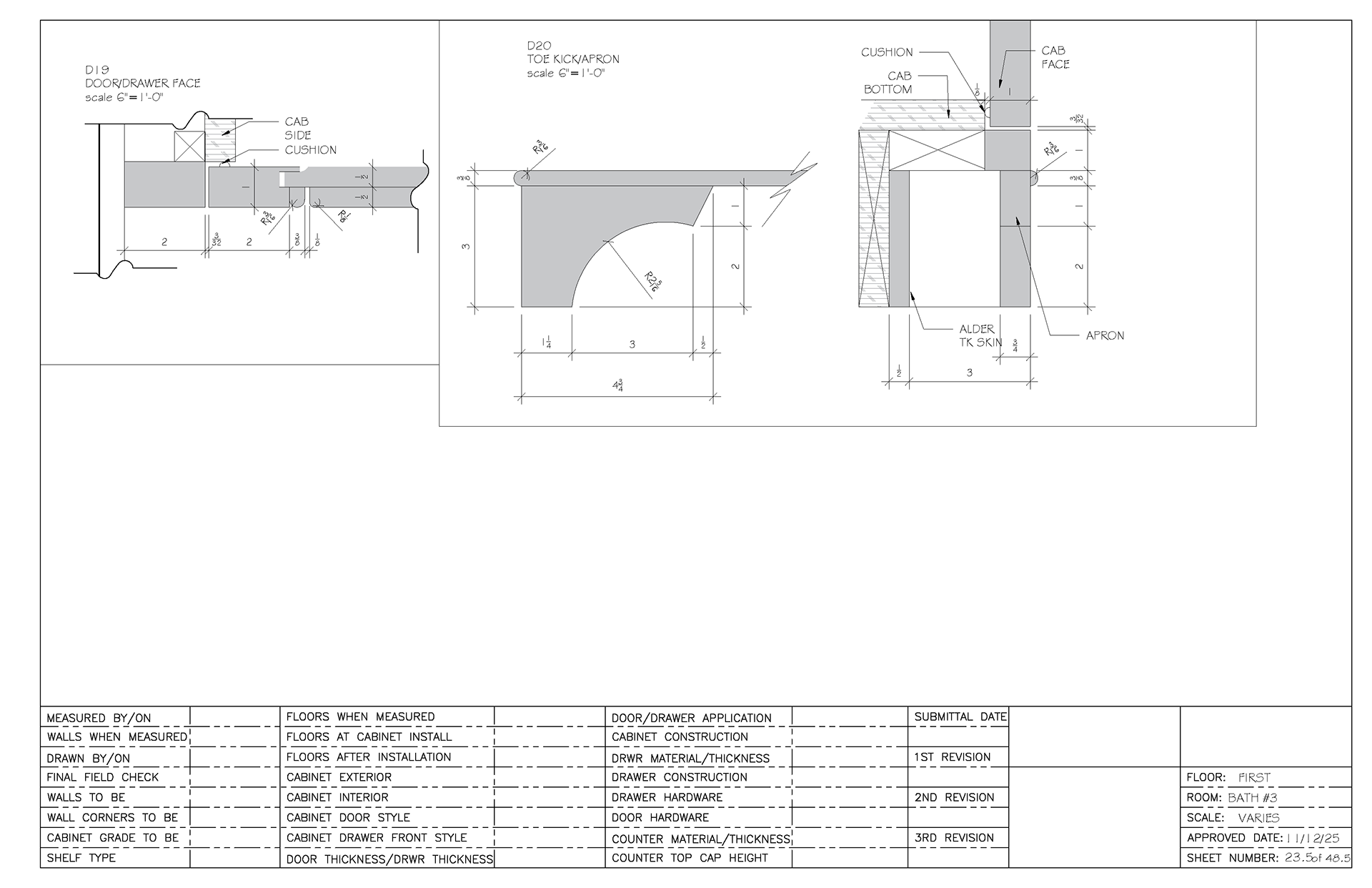

Details
Details
TV Unit

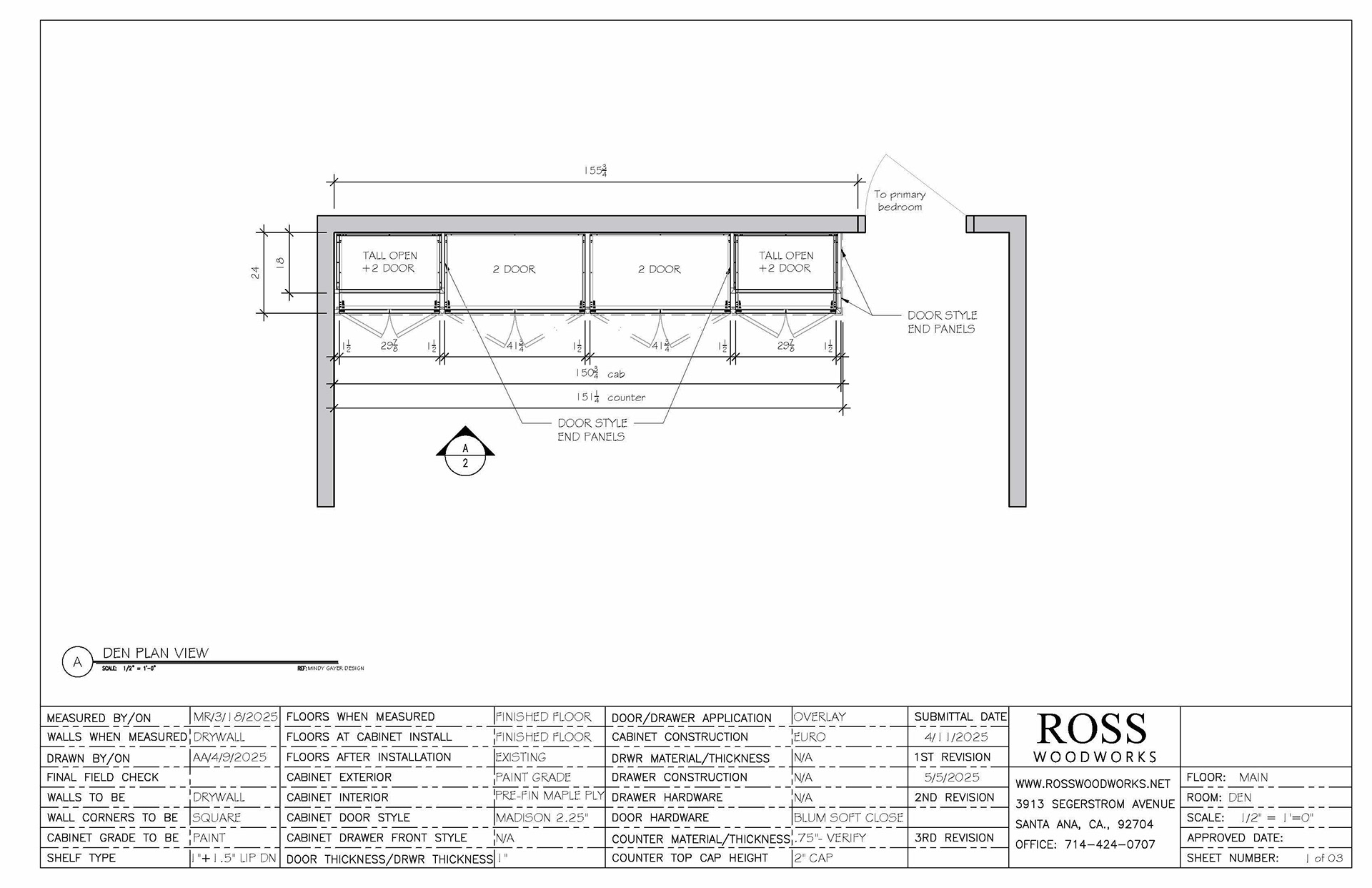

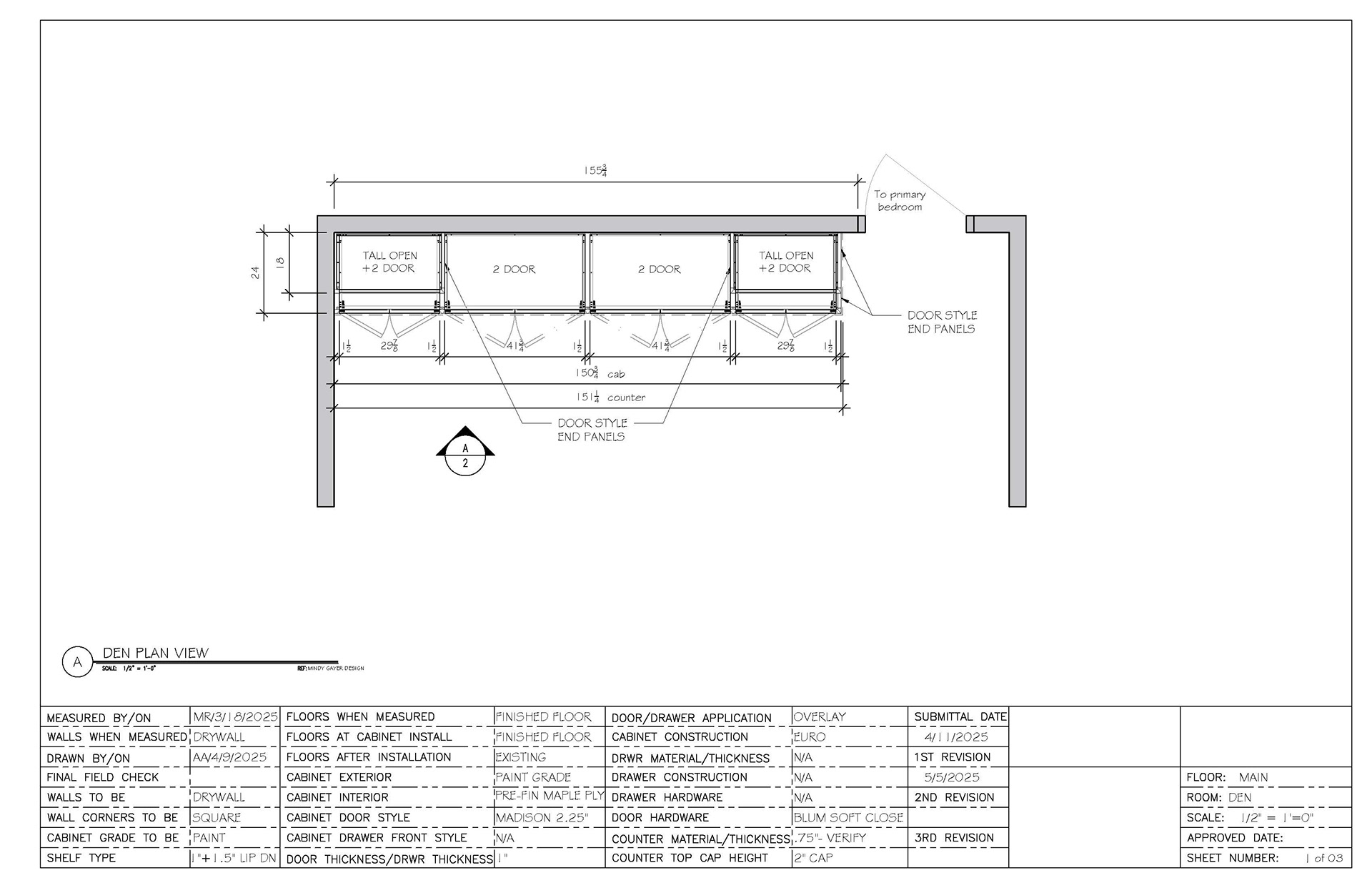

Plan View
Plan View

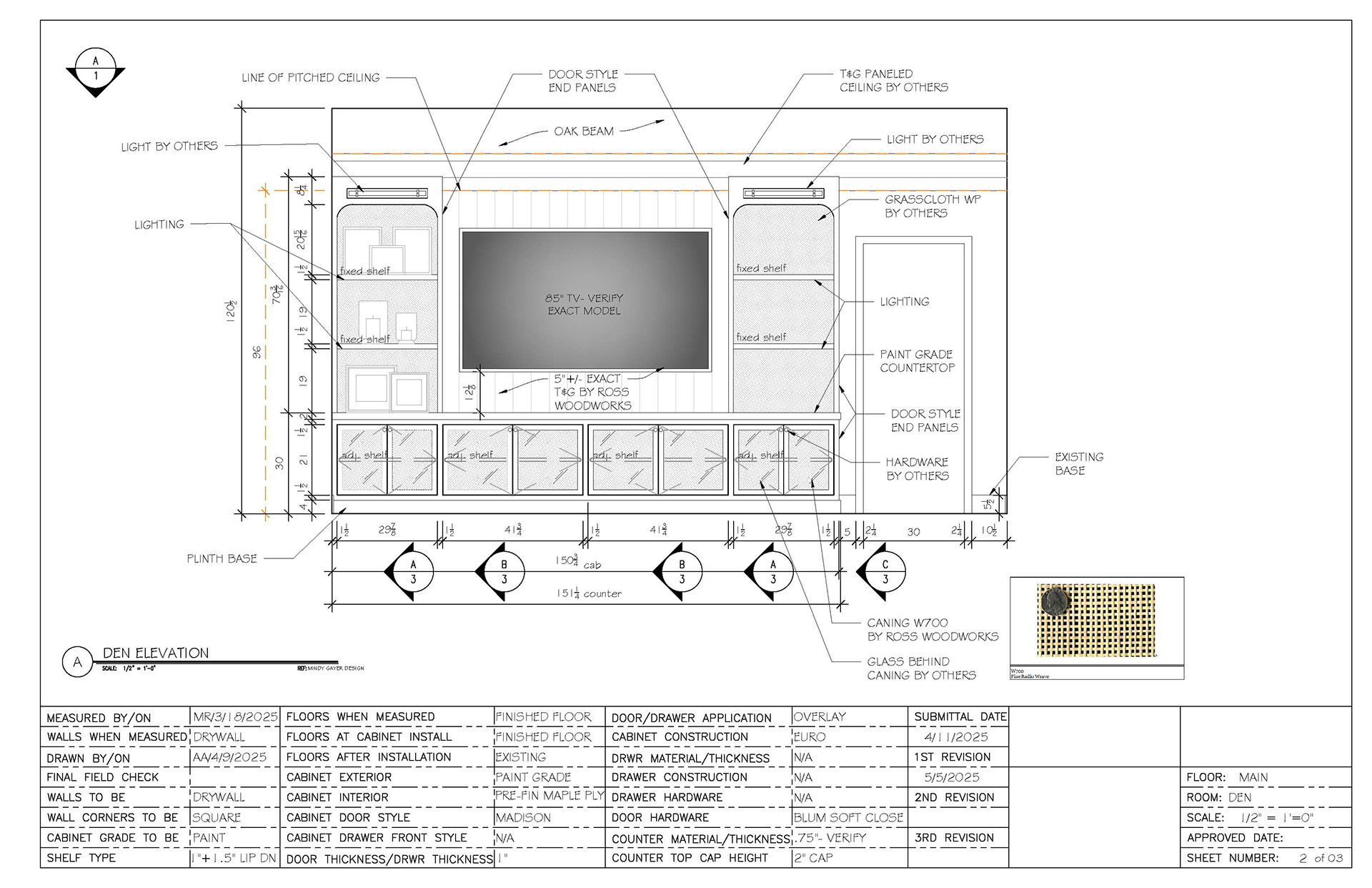

Elevation
Elevation

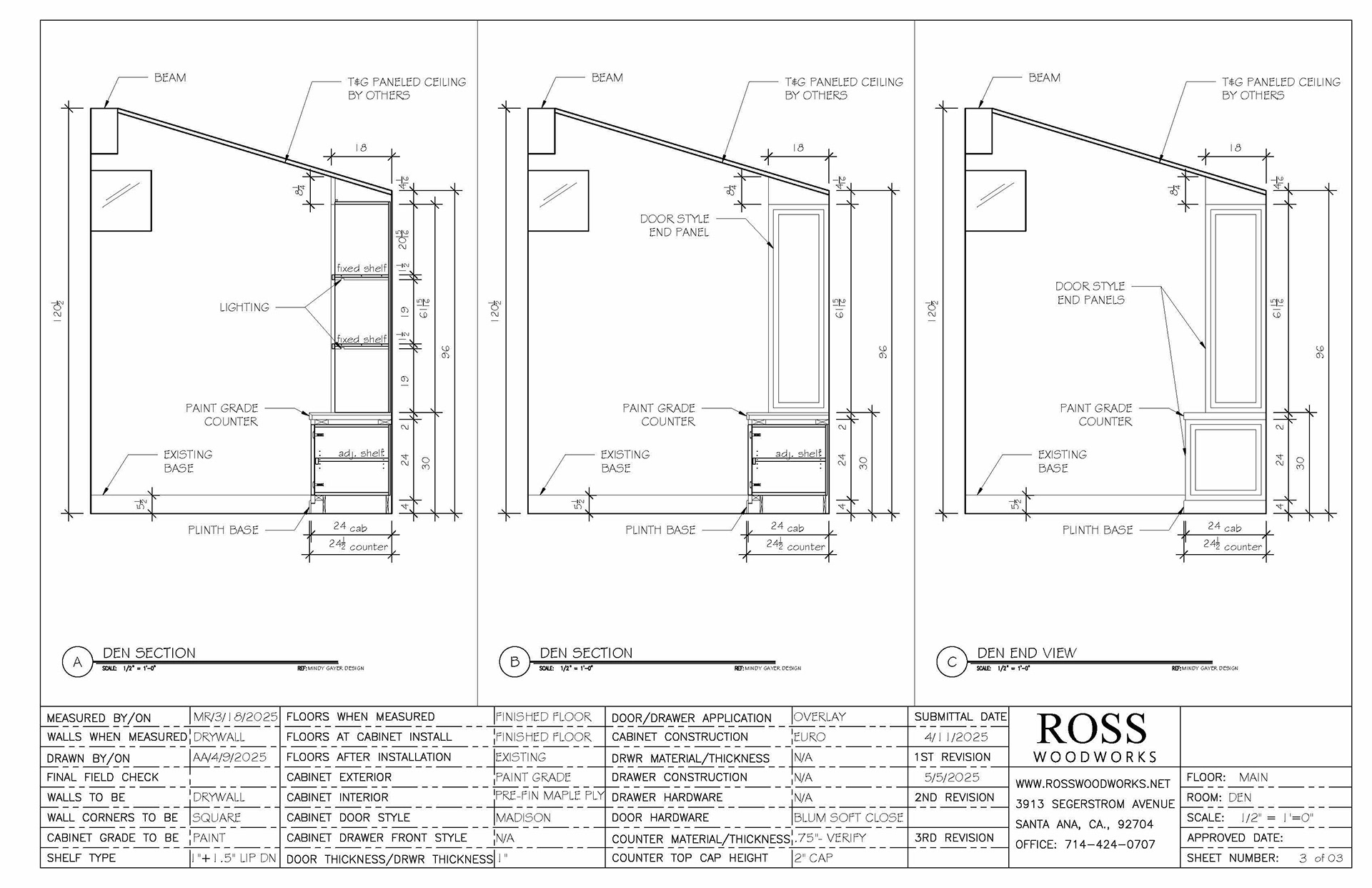

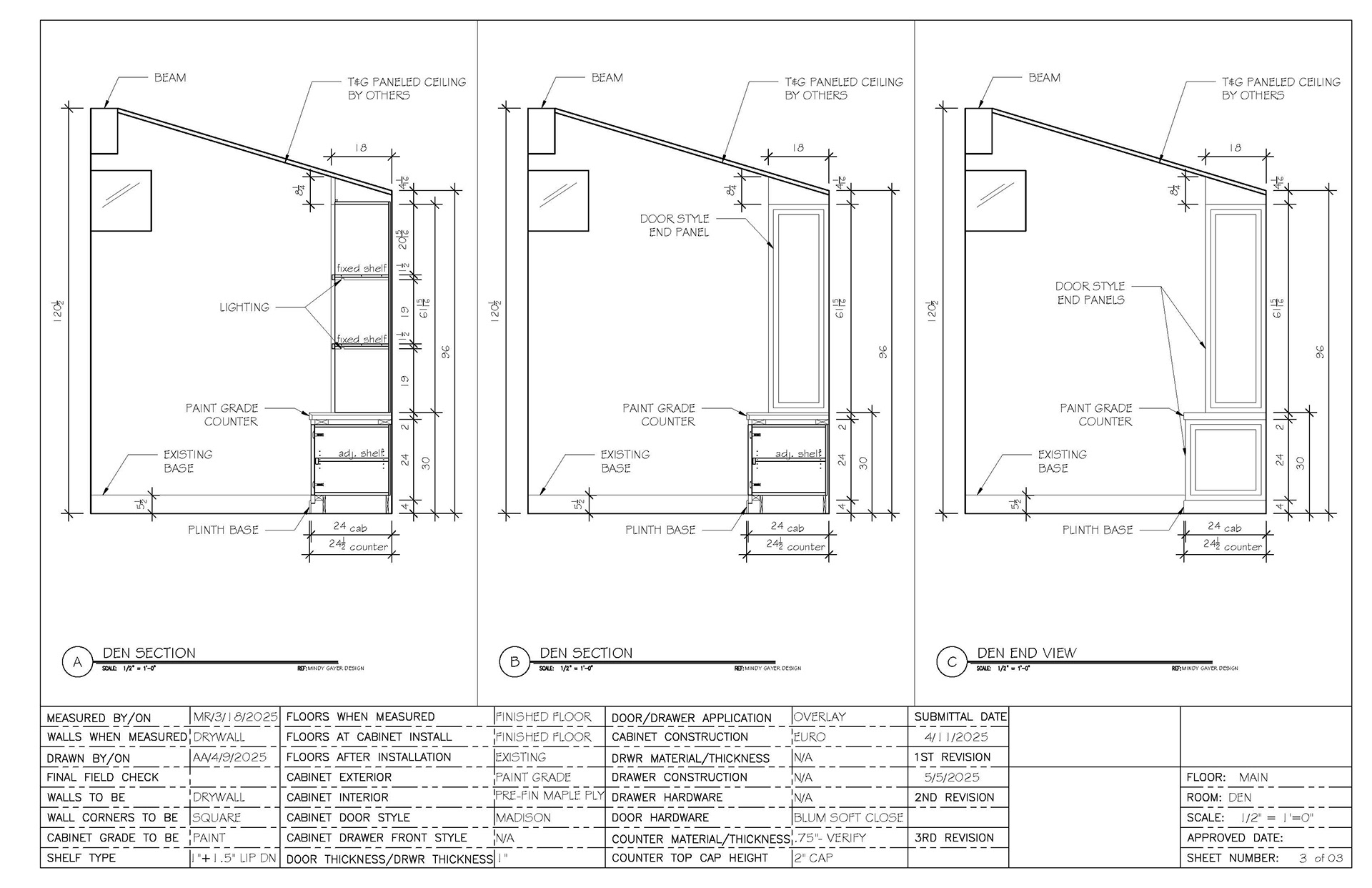

Sections
Sections
